Certified Whole Home Water Filtration
This system meets the WaterMark specification AS/NZS 3497:1998 Amdt 1 2001 Drinking water treatment unit – Plumbing requirements.
Certificate Number 23124.
- Active Chlorine 100%
- Aluminium 97%
- Bacteria & Bio Contaminants
- Cadmium 95%
- Cesium 95%
- Chloramine >90%
- Cryptosporidium & Giardia
- Cysts
- e. Coli Bacteria
- Hardness Salts / Scale-forming Minerals
- Heavy Metals & Heavy Metal Compounds 95%
- Herbicides
- Iron (Dissolved & Colloidal) 90%
- Lead 95%
- Micro-particles >2 microns 99.999%
- Noroviruses 99.9%
- Oil products & Hydrocarbons 90%
- Organic Matter & Compounds
- Particulates & Turbidity (Cloudy, Brown, or Discoloured Water) 99%
- Pesticides & Herbicides 92%
- Radioactive materials
- Rotavirus 99.9%
- Rust & Pipe Scale
- Taste & Odour
- Viruses & Viral Pathogens 100%
- Zinc 95%
Customer Reviews
Filter Specifications
- Maximum flow rate: 50 litres per minute
- Operational Temperature Range: 4°C – 52°C
- Minimum pressure required: 40PSI
- Cartridge sizes: 20″ x 4.5″
- Watermark Certificate Number 23124
- Warranty: 5 years (housing)
Filter System Inclusions
- 3 Stage Filter housing
- 3 Filter cartridges
- Caleffi Pressure valves (made in italy)
- high grade 304 stainless steel bracket
- 4 stainless steel pressure gauges (50mm in diameter)
- Spanner for easy filter changes

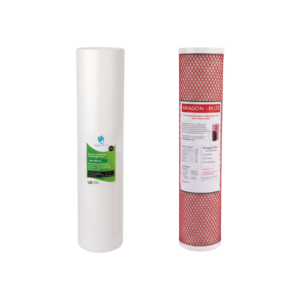

Filter Stages
Stage 1:
Polyspun Sediment Filter
- Removes Sediment, Rust, Sand, Silt, Algae
- 1 Micron filtration
- Certified to NSF 42 and FDA CFR Title 21
- Coreless design for enhanced performance without restricting flow

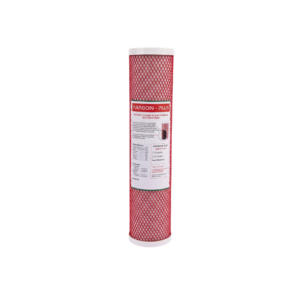

Stage 2:
Aragon Plus Filter
- Eliminates Toxic Chemicals – Filters chlorine, chloramines, pesticides, and heavy metals such as lead, aluminium, and cadmium.
- Stops Viruses & Bacteria – Removes 99.9% of harmful pathogens, including norovirus and rotavirus & provides 100% efficiency against viral pollution.
- Triple-Action Filtration – Advanced SGS polymer technology combines mechanical, sorption, and ion-exchange filtration for superior performance, making it up to 20 times more effective than common methods.
- Made in Europe: Independently tested & certified

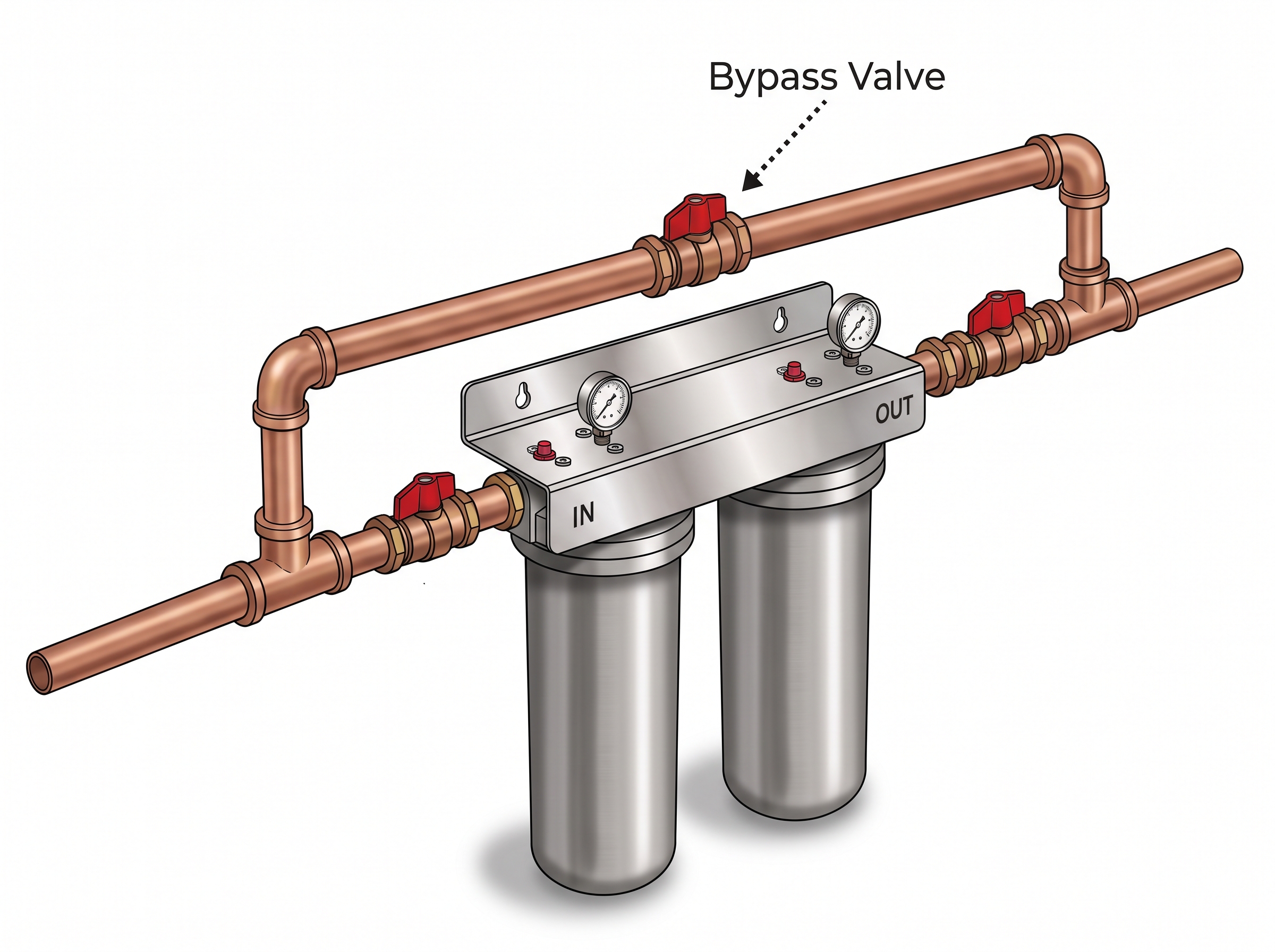

Installation Diagram
Designed for quick, hassle-free setup. Any qualified and capable plumber can easily install this system.
Integrating a bypass valve is a crucial component of any whole house water filtration system.
This feature allows you to temporarily reroute unfiltered water around the filter for tasks that don’t need purification, such as washing vehicles, irrigating the lawn, or filling a swimming pool.
By utilising unfiltered water for these outdoor chores, you prevent unnecessary wear on your equipment and significantly extend the lifespan of your filter cartridges.
Ultimately, a bypass valve gives you flexibility in how you manage your home’s filtered water usage.
Optional Stainless Steel Cover
Opting for the stainless steel stand and cover provides a stylish, heavy-duty shield for your filtration system. It is the perfect choice for areas where both aesthetics and equipment protection matter.
Key Benefits:
Built to Last: Highly resistant to rust and corrosion for long-term use.
Outdoor Ready: Built-in UV protection defends against sun damage.
Hygienic & Low Maintenance: Smooth metal surfaces make wiping it down effortless.
Physical Shielding: Guards your delicate filter components against dust, dirt, and accidental bumps.
Aesthetic Appeal: Delivers a polished, modern finish suitable for exposed or commercial installations.
Stable Base: Includes a robust stand to ensure safe and secure mounting.
